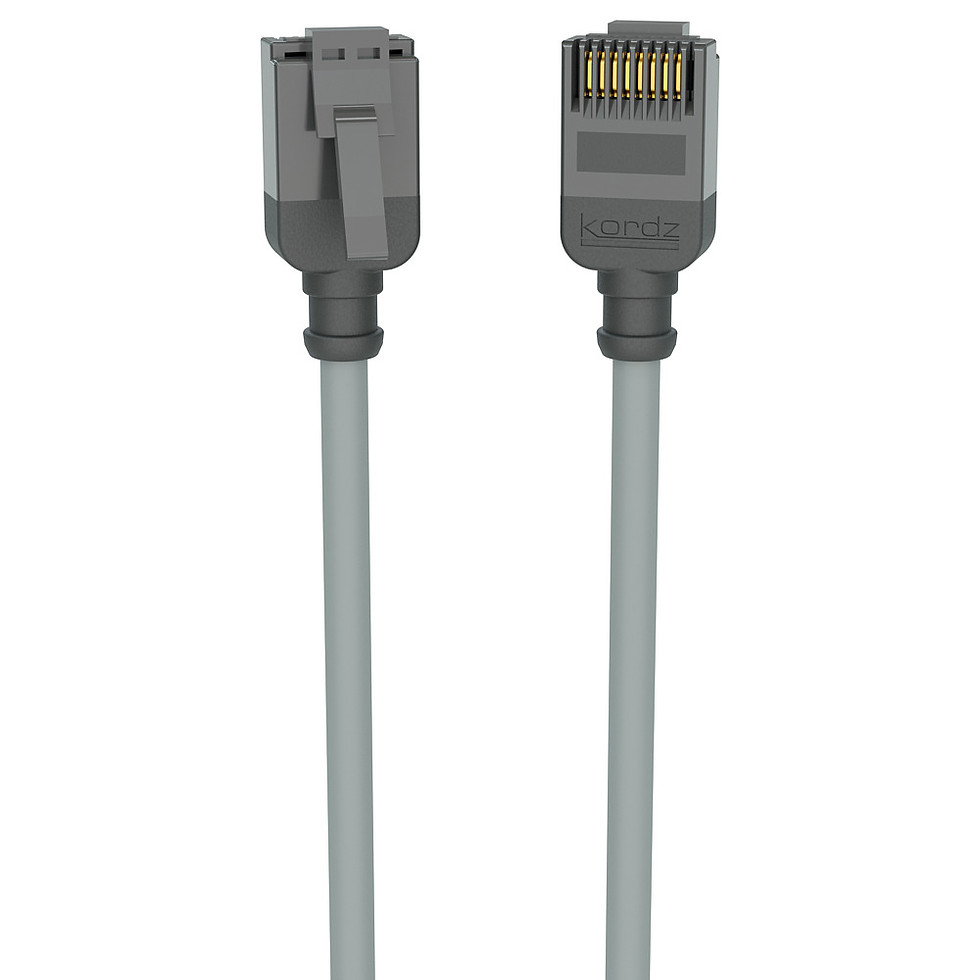

PRO CAT6 Slim Patch Cord 28AWG grey

PRO CAT6 Slim Patch Cord 28AWG grey

SKU: K23045
$7.30 Regular Price
$6.57Sale Price
PRO Series CAT6 UTP 28AWG Slim-Profile Network Patch Cables
Great for racks and installations where space is limited.

PRO Series CAT6 Patch Cord
Kordz PRO Series CAT6 Network Patch Cord is engineered with a slim profile, custom RJ45 compact connector (Patent Pending) with a robust locking latch for reliably fast Gigabit Ethernet and easier professional installations.

Kordz - making Predictable Reliability possible
Kordz is a globally recognised, multi award-winning specialist cable brand. Committed to a high standard of practical, graceful design and superior manufacturing, we deliver quality products around the world. We strive for predictable reliability, a core concept and experience of our industry-leading products, engineered to be fast, effective and more robust.
Colour

  • Product outline

    The Kordz PRO Series CAT6 Network Patch Cord is engineered with a flexible, slim profile featuring stranded 28AWG copper for fast Gigabit Ethernet in professional AV installations. Featuring our custom RJ45 compact connector (Patent Pending) with a robust locking latch and a 2000 bend cycle guarantee. Each cable is individually tested to exceed all Category 6 ANSI/TIA 568.2-D standards for all frequencies from 1 to 250 MHz and is supported by the Kordz Lifetime Warranty.

    • Engineered and constructed to ensure installation success and longevity
    • Exceeds all Category 6 ANSI/TIA 568.2-D standards for all frequencies from 1 to 250 MHz
    • UTP 28AWG CAT6 slim-profile network patch cord, overall diameter of 3.9mmØ
    • UL (CM) fire rating
    • 568B wire connection configuration
    • New compact design connector with 2000 bend cycle lock tab (Patent Pending)
    • Available in 7 colours – black, blue, grey, green, yellow, red & white
    • Available in lengths from 0.15m to 30.0m lengths
    • Kordz’ product performance guarantee and warranty for your lifetime.

  • Technical info

    Category 6 Network Patch Cord Specification Standard

    Application Standards:
    ANSI/TIA-568.2-D
    IEC11802
    EN50173
    Performance Standard:
    ≤ 10.0m – Category 6 Component Tested
    > 10.0m – Category 6 Channel Tested
    Wiring method: T568-B
    Certified Data Rate: 1 Gbps (Gigabit ethernet)
    Supported Data Rate: ≥ 1 Gbps (Gigabit ethernet)
    Certified Bandwidth: 1 to 250 MHz
    Supported Bandwidth: ≥ 250 MHz

    MECHANICAL

    Cable Diameter: 28 AWG, 3.9mm/0.15ӯ
    Maximum Cable Pulling Tension: 80 kgf/cmÇ
    Cable to Plug Tensile Strength: TBC
    Cable Bend Radius: 11.7mm | 0.46in
    Recommended Total Mounting Depth: 27.7mm | 1.09in
    Mating Cycles (max.): 1000 cycles
    Temperature range: UL Temp rating – 75ºC



    CONSTRUCTION

    Conductors: Solid 28 AWG Oxygen Free Stranded Copper
    Conductor Insulation: Polyolefin
    Shielding: Not Applicable
    Cable Jacket Material: UL CM-rated PVC
    Connector Material: Nylon
    Contact Type: 3-prong for solid/stranded conductors
    Strain Relief: Injection-moulded PVC

    ELECTRICAL CHARATERISTICS

    Conductor Resistance: 223Ω/km
    Insulation Resistance: 10MΩ min @100V DC

  • Warranty

    Kordz offers a Lifetime Warranty on all passive cables including PRO CAT6. All Kordz PRO CAT6 cables are individually performance tested to ensure premium quality and satisfaction.

  • Datasheet

    Download
